FEATURES:

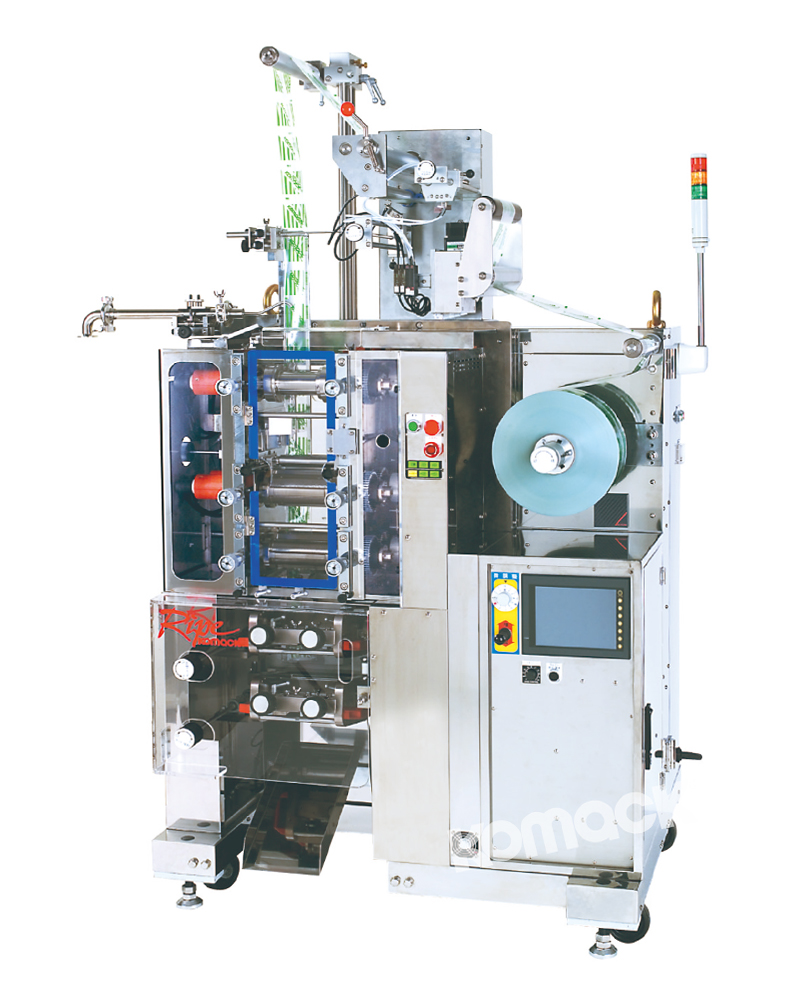

    This machine is the compact packaging machine for liquid and paste, which emphasizes its versatility, good performance and easy maintenance. The full-axis servo control manages the data including the pouch size, sealing temperature, filling volume and the timing of each drive axis, and the data of 100 or more products can be stored. The touch panel shows the menu items, such as the "administrative items", "data storage" and "initial settings", which are colored by different usage, and it has perfect performance. Equipped with the film position correcting device, it makes the feeding of various film more stable. The driving section is visible through the clear cover. Each heat roller can be easily maintained from the front or rear of the machine. And more convinient point is the entire cutter device can be taken out by releasing four locks, so that the overhaul can be easily done.
APPLICATION:
    This machine is broadly used in packaging liquid soup,cosmetics,cleansing liquid and mayonnaie,which require high filling precision.
SPECIFICATIONS:
    Filling Product Liquid & Paste
    Pouch Pattern 3-side seal & 4-side seal
    Pouch Height Range 2divisions 100-200mm
    3divisions 80-150mm
    4divisions 55-100mm
    5divisions 45-80mm
    6divisions 40-60mm
    According to the width of horizontal sealing pouch height range is different.
    Pouch Width 25-130mm
    ※4-side seal when pouch width is 130mm
    Packaging Capacity 20-300 pouches per minute
    (depending on pouch height,film composition,product property,etc)
    Filling Capacity 1-200ml
    (depending on product property and filling device to be used)
    Applicable Film Width 50-260mm
    Maximum Film Roll Dia ￠400mm
    Power Consumption 3-phase 380V 6.5kw
    Air Consumption
    Machine Dimensions 1117mm(L)×942mm(W)×2035mm(H)
    Machine Weight Approx.700kg

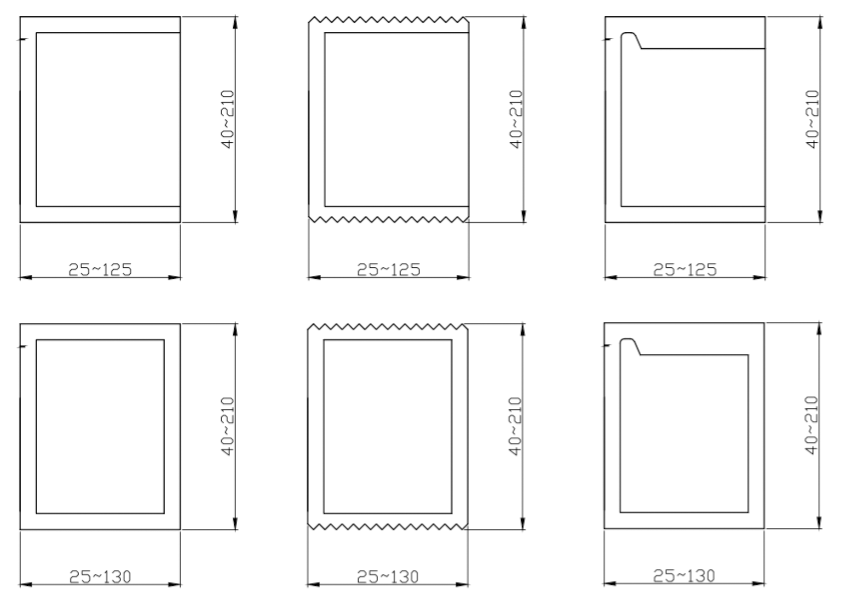

PACKAGING STYLE:
